Guide Bushes
Guide Bush Carbide Lined - Drawn

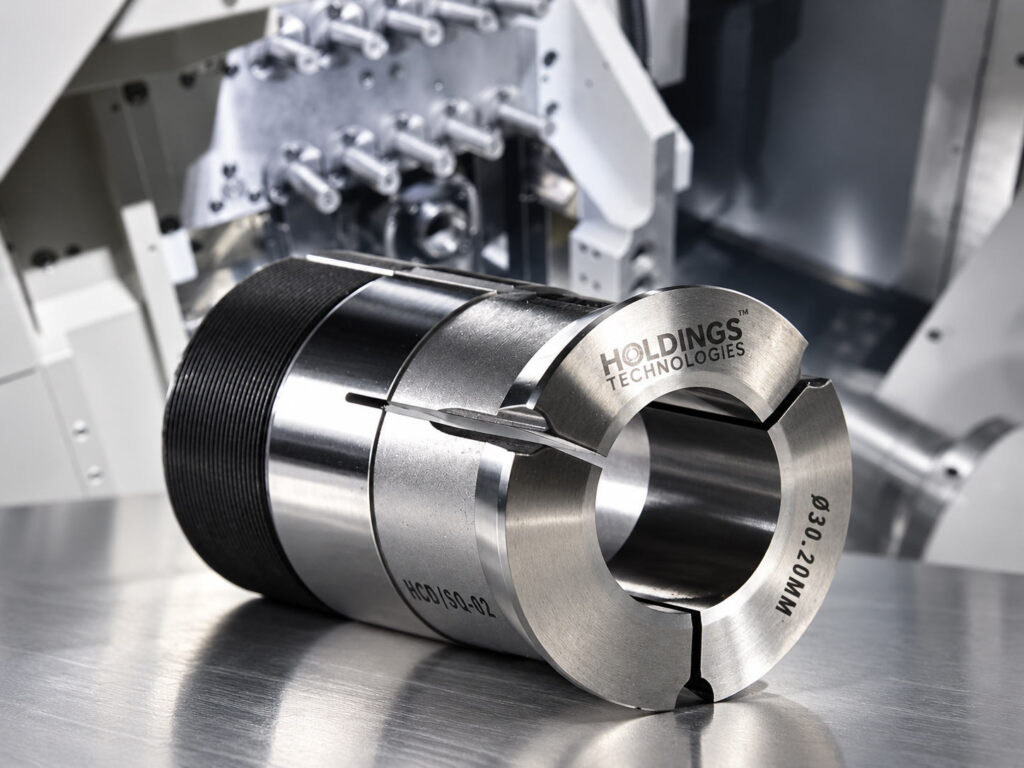

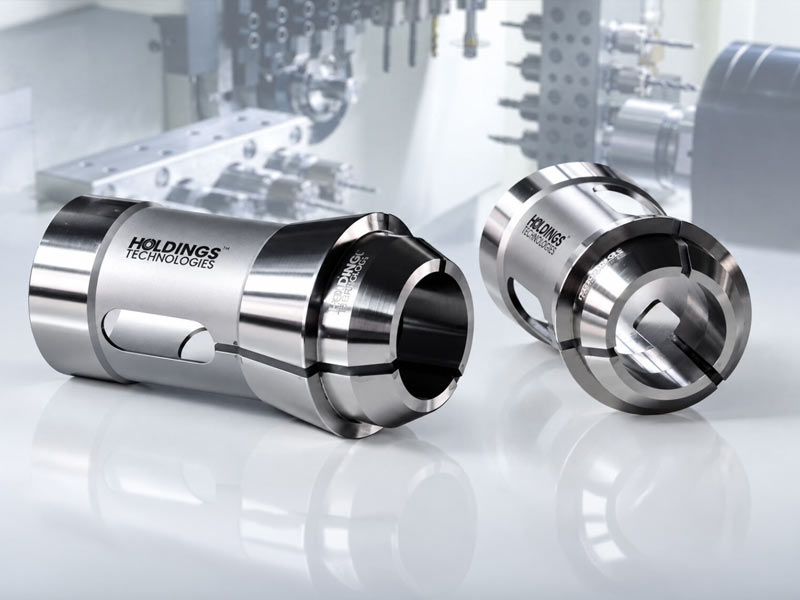

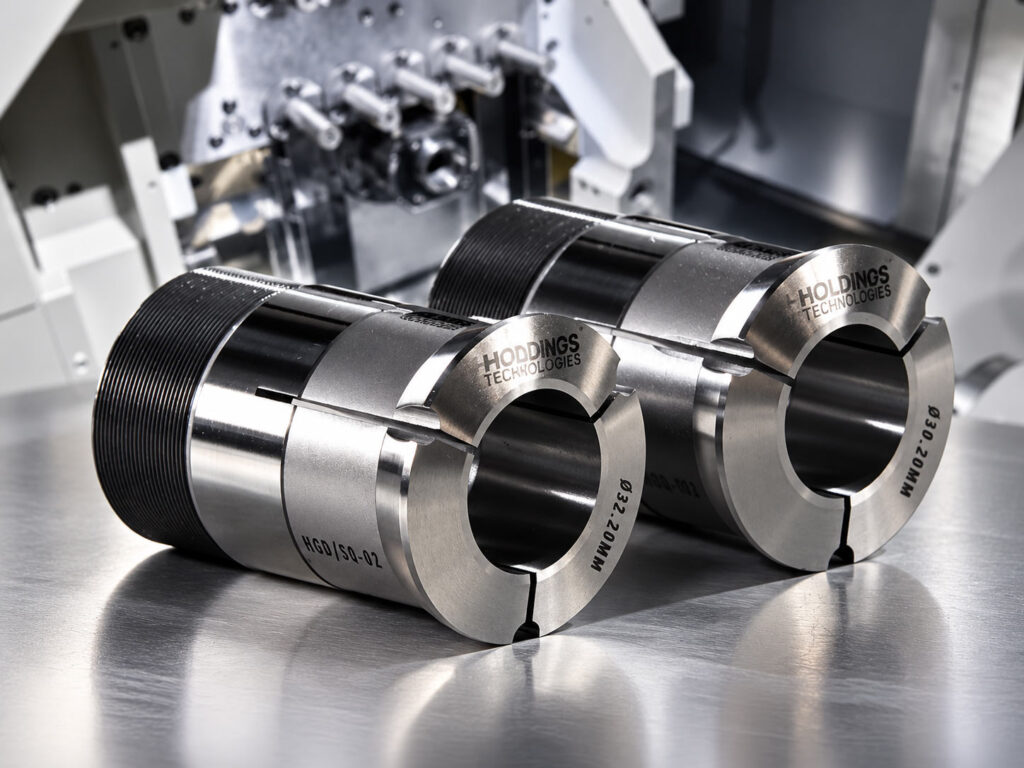

Holdings Technologies Innovations manufactures high-precision Guide Bushes without Carbide Linings for Swiss-type lathes, engineered to deliver reliable guiding performance and cost-effective solutions for machining aluminium and other soft materials where friction and wear are relatively low. Designed for excellent rigidity, smooth bar guidance, and consistent machining accuracy, these guide bushes provide reliable support and repeatable performance in precision turning applications.

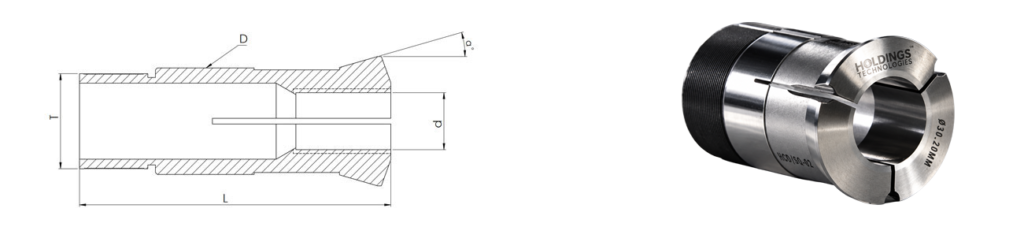

Specifications
| Part No. | ØD[mm] | L[mm] | T[Thread] | α[degree] | Round | Hexagon | Square |
|---|---|---|---|---|---|---|---|
| HGD/7-02 | 7 | 30 | M6x0.5 | 16° | 35 | – | – |
| HGD/9-01 | 9 | 44 | M8X0.5 | 16° | 5 | 4 | 3 |
| HGD/9-03 | 9 | 38.5 | M8x0.75 | 16° | 5 | 4 | 3 |
| HGD/9-06 | 9 | 51 | M8x0.8 | 30° | 5 | 4 | 3 |
| HGD/9-09 | 9 | 44 | M8x0.75 | 16° | 5 | 4 | 3 |
| HGD/10-03 | 10 | 58 | M10x0.75 | 12° | 5.5 | 4 | 3 |
| HGD/11-02 | 11 | 53 | M10x0.75 | 16° | 7 | 5 | 4 |
| HGD/11-09 | 11 | 53 | M10x1 | 16° | 7 | 5 | 4 |
| HGD/11-10 | 11 | 57 | M10x0.75 | 16° | 7 | 5 | 4 |
| HGD/11-11 | 11 | 52.4 | M10x0.75 | 16° | 7 | 5 | 4 |
| HGD/11-12 | 11 | 53 | M10x0.80 | 16° | 7 | 5 | 4 |
| HGD/12-01 | 12 | 52 | M12x1 | 30° | 7 | 6 | 5 |
| HGD/12-02 | 12 | 50 | M10x0.75 | 16° | 7 | 6 | 5 |
| HGD/12-05 | 12 | 50 | M10x0.75 | 16° | 7 | 6 | 5 |
| HGD/12-07 | 12 | 50 | M12x1 | 30° | 7.5 | 6 | 5 |
| HGD/12-08 | 12 | 50 | M10x0.5 | 30° | 7 | 5 | 4 |
| HGD/12-09 | 12 | 50 | M12x1 | 30° | 7.5 | 6 | 5 |
| HGD/13-01 | 13 | 41.5 | M12x0.75 | 15° | 8 | 6 | 5 |
| HGD/14-02 | 14 | 64 | M13x0.75 | 16° | 8.5 | 7 | 6 |
| HGD/14-03 | 14 | 62 | M14x1 | 15°30′ | 8.5 | 7 | 6 |
| HGD/15-02 | 15 | 54 | M14x1 | 16° | 10 | 8 | 7 |
| HGD/15-03 | 15 | 54 | M14x0.75 | 15° | 8.5 | 7 | 6 |
| HGD/16-01 | 16 | 50 | M14x1 | 16° | 10 | 8 | 7 |
| HGD/16-03 | 16 | 60 | M14x1 | 30° | 10 | 8 | 7 |
| HGD/16-06 | 16 | 55 | M16x1 | 30° | 10 | 8 | 7 |
| HGD/16-07 | 16 | 63 | M14x1 | 15°30′ | 10 | 8 | 7 |
| HGD/16-10 | 16 | 58 | M14x1 | 16° | 10 | 8 | 7 |
| HGD/16-12 | 16 | 59 | M14x1 | 16° | 10 | 8 | 7 |
| HGD/16-15 | 16 | 59 | M15x1 | 16° | 11 | 9 | 8 |
| HGD/16-16 | 16 | 58.5 | M14x1 | 20° | 10 | 8 | 7 |
| HGD/16-18 | 16 | 63 | M14x1 | 16°30′ | 10 | 8 | 7 |
| HGD/18-01 | 18 | 59 | M16x1 | 30° | 12 | 10 | 8 |
| HGD/18-02 | 18 | 60 | M18x1 | 30° | 13 | 10 | 9 |
| HGD/18-03 | 18 | 60 | M18x1 | 30° | 13 | 10 | 9 |
| HGD/18-06 | 18 | 76 | M18X1 | 22° | 13 | 10 | 9 |
| HGD/18-08 | 18 | 60 | M18X1 | 30° | 12.5 | 10 | 8 |
| HGD/20-01 | 20 | 55 | M20x1 | 30° | 14 | 11 | 9 |
| HGD/20-06 | 20 | 55 | M20x1 | 30° | 13 | 11 | 9 |
| HGD/20-07 | 20 | 58 | M18x1 | 15° | 13 | 11 | 9 |
| HGD/21-03 | 21 | 57.5 | M18x1 | 12° | 14 | 11 | 9 |
| HGD/22-01 | 22 | 68 | M19x1 | 16° | 14 | 12 | 10 |
| HGD/22-03 | 22 | 70 | M20x1 | 15° | 15.5 | 13 | 11 |
| HGD/22-04 | 22 | 68 | M19X1 | 16° | 15 | 12 | 10 |
| HGD/22-08 | 22 | 68 | M22x1 | 16° | 16 | 13 | 11 |
| HGD/23-01 | 23 | 72 | M22x1 | 16° | 16.5 | 14 | 11 |
| HGD/24-03 | 24 | 61 | M24x1 | 30° | 16 | 13 | 11 |
| HGD/26-02 | 26 | 77 | M25x1 | 16° | 20 | 17 | 14 |
| HGD/26-04 | 26 | 71 | M24X1.5 | 15° | 18 | 15 | 13 |
| HGD/27-03 | 27 | 57.5 | M24x1 | 12° | 18 | 15 | 12 |
| HGD/28-02 | 28 | 81 | M25x1 | 30° | 20.5 | 17 | 14 |
| HGD/28-04 | 28 | 82 | M25x1 | 16° | 20.5 | 17 | 14 |
| HGD/28-05 | 28 | 82 | M27x1 | 16° | 22 | 18 | 15 |
| HGD/30-01 | 30 | 70 | M28x1 | 16° | 20.5 | 17 | 14 |
| HGD/30-02 | 30 | 85 | M28x1 | 16° | 20.5 | 17 | 14 |
| HGD/30-04 | 30 | 59 | M30x1 | 15° | 22 | 19 | 16 |
| HGD/30-05 | 30 | 59 | M30x1 | 16° | 22 | 19 | 16 |
| HGD/30-06 | 30 | 68 | M30x1 | 16° | 22 | 19 | 16 |
| HGD/30-07 | 30 | 70 | M30x1 | 16° | 22 | 19 | 16 |
| HGD/30-08 | 30 | 57.5 | M30X1 | 16° | 22 | 19 | 16 |
| HGD/32-02 | 32 | 71 | M32x1 | 30° | 23 | 19 | 16 |
| HGD/32-03 | 32 | 74 | M32x1 | 30° | 24 | 21 | 17 |
| HGD/33-01 | 33 | 70 | M30x1 | 16° | 26 | 22 | 18 |
| HGD/34-02 | 34 | 87.5 | M34x1 | 10° | 27.5 | 23 | 19 |
| HGD/34-03 | 34 | 87.5 | M34X1 | 10° | 27.5 | 23 | 19 |
| HGD/36-02 | 36 | 89.5 | M36x1 | 13° | 25 | 21 | 18 |
| HGD/40-03 | 40 | 72 | M36x1 | 30° | 29 | 25 | 21 |
| HGD/40-05 | 40 | 72 | M40x1 | 30° | 30 | 25 | 21 |
| HGD/41-01 | 41 | 54 | M38x1 | 10° | 32 | 27 | 22 |
| HGD/41-02 | 41 | 82 | M38x1 | 10° | 32 | 27 | 22 |
| HGD/41-03 | 41 | 82 | M38X1 | 10° | 32 | 27 | 22 |
| HGD/41-04 | 41 | 54 | M38X1 | 10° | 30 | 26 | 21 |
| HGD/42-01 | 42 | 82 | M40x1 | 16° | 33 | 28 | 23 |
| HGD/42-02 | 42 | 82 | M40x1 | 20°30′ | 33 | 28 | 23 |
| HGD/42-04 | 42 | 82 | M40x1 | 20° | 33 | 28 | 23 |
| HGD/44-01 | 44 | 87 | M40x1 | 20° | 33 | 28 | 23 |
| HGD/45-01 | 45 | 82 | M42x1 | 16° | 36 | 30 | 25 |
| HGD/46-01 | 46 | 92 | M45x1 | 16° | 38 | 32 | 26 |
| HGD/46-02 | 46 | 82 | M45x1 | 16° | 38 | 32 | 26 |
| HGD/48-02 | 48 | 81 | M48x1.25 | 30° | 38 | 33 | 27 |
| HGD/48-04 | 48 | 82 | M46x1 | 16° | 38 | 33 | 27 |
| HGD/48-06 | 48 | 81 | M46x1 | 10° | 38 | 33 | 27 |
| HGD/48-08 | 48 | 82 | M46X1 | 16° | 38 | 33 | 27 |
| HGD/50-02 | 50 | 82 | M49x1 | 19° | 42 | 36 | 29 |
| HGD/52-01 | 52 | 99 | M48x1.5 LH | 10° | 40 | 34 | 28 |
| HGD/52-02 | 52 | 95 | M50x1 | 16° | 43 | 37 | 30 |
Note : All dimensions are provided in millimeters (mm). We continually upgrade our products, so the specifications in the catalog are for reference only. Manufacturer reserves the right to modify drawings, specifications, and dimensions without prior notice.
