Collets

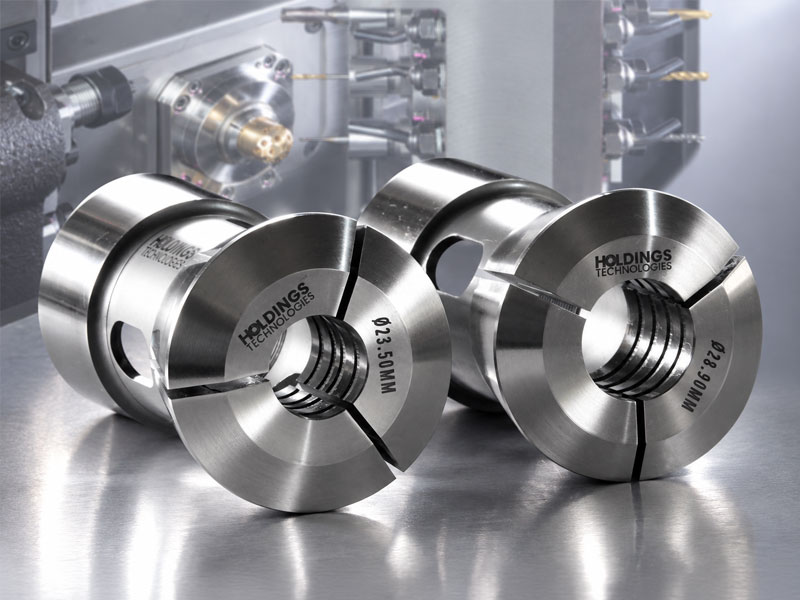

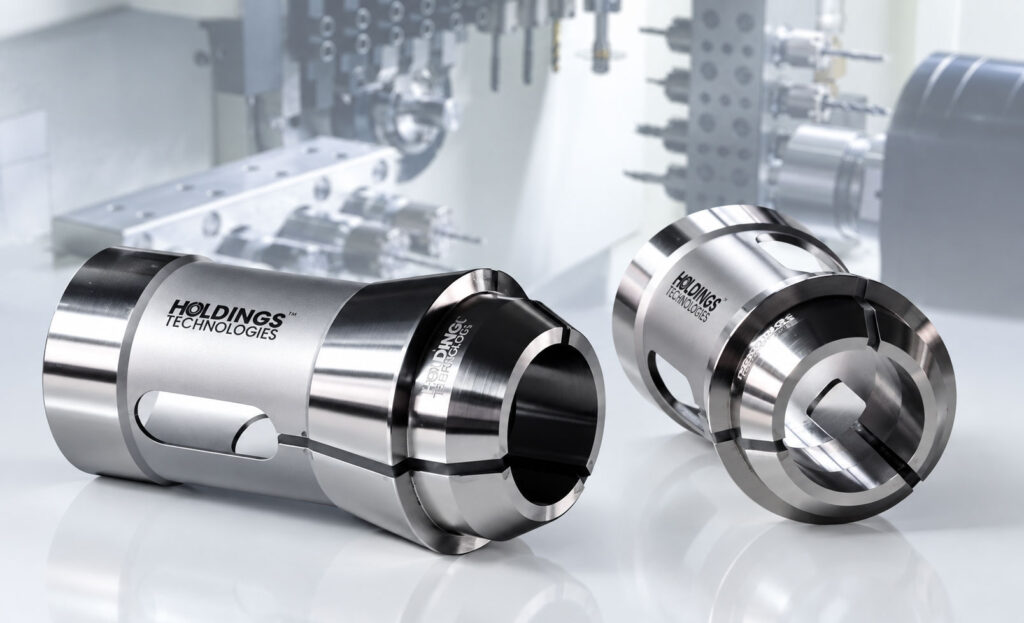

Bar Feeder Collets – Internal Thread
Holdings Technologies Finger Collets are precision-ground to exact sizes, guaranteeing the highest machining standards and providing exceptional performance in even the most demanding applications.
Specifications
| Part Nr. | Outer Dia ΦA |
Thread T |
Length L |
Range ΦD Min / ΦD Max |
|
|---|---|---|---|---|---|
| HBI/05-01 | 5.15 | M4x0.7 | 37 | 1 | 3.5 |
| HBI/7.5-02 | 7.5 | M5x0.50 | 40 | 1 | 5.5 |
| HBI/08-02 | 8 | M4x0.70 | 50 | 1 | 6 |
| HBI/8.5-01 | 8.5 | M5x0.80 | 30 | 1 | 6 |
| HBI/09-01 | 9 | M6x0.75 | 40 | 1 | 7 |
| HBI/9.5-02 | 9.5 | M5x0.80 LH | 45 | 1 | 7.5 |
| HBI/9.5-03 | 9.5 | M5x0.80 | 45 | 1 | 7.5 |
| HBJ/10-03 | 10 | M6x1 LH | 46 | 1 | 8 |
| HBJ/10-04 | 10 | M6x0.75 | 42 | 1 | 8 |
| HBJ/10-06 | 10 | M5x0.80 LH | 50 | 1 | 8 |
| HBJ/10-08 | 10 | M5x0.80 | 50 | 1 | 8 |
| HBJ/12-01 | 12 | M7x0.75 | 42 | 1 | 10 |
| HBJ/12-04 | 12 | M6x1 LH | 40 | 1 | 10 |
| HBJ/12-06 | 12 | M7x0.75 | 42 | 1 | 10 |
| HBJ/12-07 | 12 | M5x0.80 LH | 45 | 1 | 10 |
| HBJ/13-01 | 13 | M8x1 LH | 60 | 1 | 11 |
| HBJ/13-02 | 13 | M5x0.80 LH | 50 | 1 | 11 |
| HBJ/14-01 | 14 | M8x1 | 42 | 3 | 12 |
| HBJ/14-04 | 14 | M7x0.75 | 42 | 3 | 12 |
| HBJ/15-02 | 15 | M8x1 | 42 | 3 | 13 |
| HBJ/15-03 | 15 | M9x1 LH | 60 | 3 | 13 |
| HBJ/15-04 | 15 | M10x1 LH | 60 | 3 | 13 |
| HBJ/15-07 | 15 | M5x0.50 | 40 | 3 | 13 |
| HBJ/15-09 | 15 | M10x1 LH | 73 | 3 | 13 |
| HBJ/15-11 | 15 | M10x1 | 60 | 3 | 13 |
| HBJ/15-12 | 15 | M8x1 | 60 | 3 | 13 |
| HBJ/15-14 | 15 | M12x1 LH | 85 | 3 | 13 |
| HBJ/15-15 | 15 | M9x1 LH | 50 | 3 | 13 |
| HBJ/15-16 | 15 | M8x1 LH | 16 | 3 | 13 |
| HBJ/16-01 | 16 | M10x1 LH | 73 | 3 | 14 |
| HBJ/16-04 | 16 | M9x1 LH | 58 | 3 | 14 |
| HBJ/16-06 | 16 | M8x1 | 42 | 12 | 14 |
| HBJ/18-03 | 18 | M9x1 LH | 42 | 6 | 16 |
| HBJ/18-04 | 18 | M9x1 LH | 60 | 13 | 16 |
| HBJ/18-05 | 18 | M10x1 LH | 59 | 13 | 16 |
| HBJ/18-06 | 18 | M10x1 | 59 | 13 | 16 |
| HBJ/19-01 | 19 | M10x1 | 59 | 13 | 17 |
| HBJ/19-06 | 19 | M9x1 LH | 60 | 13 | 17 |
| HBJ/19-08 | 19 | M8x1 | 40 | 12 | 17 |
| HBJ/19-09 | 19 | M5x0.80 LH | 50 | 13 | 17 |
| HBJ/20-03 | 20 | M10x1 | 59 | 4 | 17 |
| HBJ/20-04 | 20 | M10x1 LH | 60 | 13 | 17 |
| HBJ/20-07 | 20 | M10x1 | 60 | 13 | 17 |
| HBJ/20-08 | 20 | M9x1 LH | 59 | 13 | 17 |
| HBJ/20-09 | 20 | M10x1 | 42 | 8 | 17 |
| HBJ/20-10 | 20 | M9x1 | 59 | 13 | 17 |
| HBJ/22-01 | 22 | M10x1 | 59 | 17 | 19 |
| HBJ/22-04 | 22 | M9x1 LH | 59 | 17 | 19 |
| HBJ/23-04 | 23 | M10x1 | 59 | 17 | 20 |
| HBJ/23-05 | 23 | M9x1 LH | 60 | 17 | 20 |
| HBJ/24-01 | 24 | M9x1 LH | 60 | 17 | 21 |
| HBJ/25-06 | 25 | M10x1 | 59 | 17 | 22 |
| HBJ/25-07 | 25 | M10x1 LH | 59 | 17 | 22 |
| HBJ/25-08 | 25 | M9x1 LH | 60 | 17 | 22 |
| HBJ/25-09 | 25 | M17x1 | 60 | 13 | 22 |
| HBJ/26.5-01 | 26.5 | M17x1 | 65 | 15 | 23 |
| HBJ/27-01 | 27 | M10x1 LH | 65 | 15 | 24 |
| HBJ/27-02 | 27 | M10x1 | 65 | 15 | 24 |
| HBJ/27-03 | 27 | M9x1 LH | 59 | 15 | 24 |
| HBJ/29-01 | 29 | M18x1.5 LH | 65 | 17 | 26 |
| HBJ/30-01 | 30 | M10x1 | 65 | 24 | 27 |
| HBJ/30-03 | 30 | M18x1.5 | 65 | 17 | 27 |
| HBJ/30-04 | 30 | M18x1.5 LH | 65 | 17 | 27 |
| HBJ/30-05 | 30 | M10x1 LH | 65 | 17 | 27 |
| HBJ/32-01 | 32 | M17x1 LH | 70 | 19 | 29 |
| HBJ/32-02 | 32 | M25x1.5 LH | 80 | 19 | 29 |
| HBJ/32-04 | 32 | M25x1.5 | 80 | 19 | 29 |
| HBJ/35-02 | 35 | M25x1.5 | 80 | 29 | 32 |
| HBJ/35-04 | 35 | M25x1.5 LH | 80 | 29 | 32 |
| HBJ/36-01 | 36 | M30x1.5 | 100 | 23 | 33 |
| HBJ/40-01 | 40 | M25x1.5 | 80 | 32 | 37 |
| HBI/42-02 | 42 | 90 | M25x1.5 LH | 29 | 39 |
| HBI/42-04 | 42 | 80 | M25x1.5 LH | 32 | 39 |
| HBI/42-05 | 42 | 90 | M32x1.5 LH | 29 | 39 |
| HBI/42-08 | 42 | 80 | M25x1.5 LH | 29 | 39 |
| HBI/44-01 | 44 | 80 | M25x1.5 LH | 39 | 41 |
| HBI/46-01 | 46 | 80 | M25x1.5 LH | 37 | 43 |
| HBI/46-02 | 46 | 80 | M25x1.5 LH | 41 | 43 |
Note : All dimensions are provided in millimeters (mm). We continually upgrade our products, so the specifications in the catalog are for reference only. Manufacturer reserves the right to modify drawings, specifications, and dimensions without prior notice.
