Guide Bushes
Guide Bush Carbide Lined - Drawn

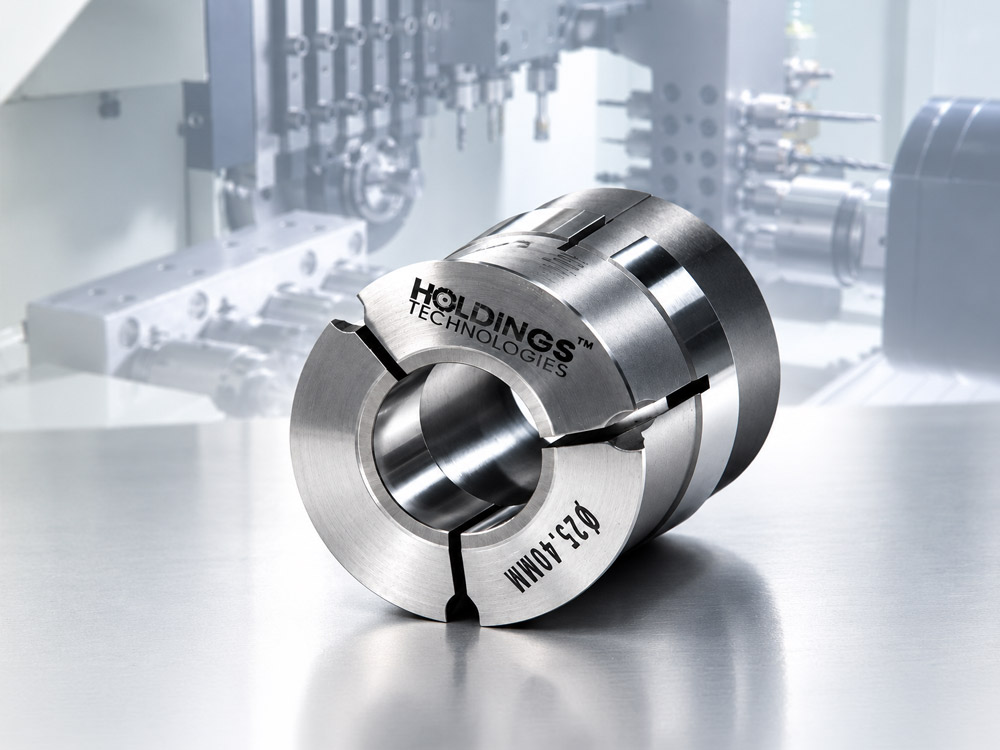

Holdings Technologies Guide Bushes are precision-ground to exact sizes, guaranteeing the highest machining standards and providing exceptional performance in even the most demanding applications.

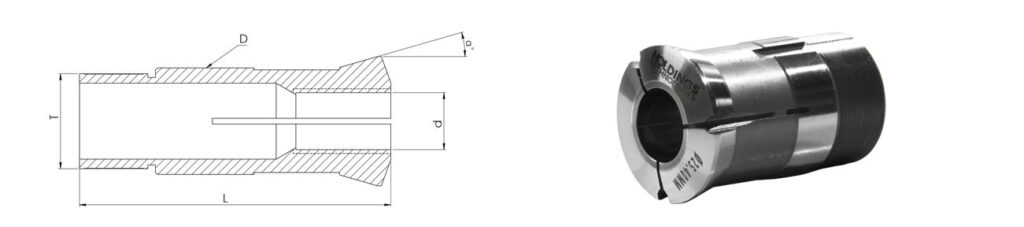

Specifications
| Part No. | ØD[mm] | L[mm] | T[Thread] | α[degree] | Round | Hexagon | Square |
|---|---|---|---|---|---|---|---|
| HGD/7-02 | 7 | 30 | M6x0.5 | 16° | 35 | – | – |
| HGD/9-01 | 9 | 44 | M8X0.5 | 16° | 5 | 4 | 3 |
| HGD/9-03 | 9 | 38.5 | M8x0.75 | 16° | 5 | 4 | 3 |
| HGD/9-06 | 9 | 51 | M8x0.8 | 30° | 5 | 4 | 3 |
| HGD/9-09 | 9 | 44 | M8x0.75 | 16° | 5 | 4 | 3 |
| HGD/10-03 | 10 | 58 | M10x0.75 | 12° | 5.5 | 4 | 3 |
| HGD/11-02 | 11 | 53 | M10x0.75 | 16° | 7 | 5 | 4 |
| HGD/11-09 | 11 | 53 | M10x1 | 16° | 7 | 5 | 4 |
| HGD/11-10 | 11 | 57 | M10x0.75 | 16° | 7 | 5 | 4 |
| HGD/11-11 | 11 | 52.4 | M10x0.75 | 16° | 7 | 5 | 4 |
| HGD/11-12 | 11 | 53 | M10x0.80 | 16° | 7 | 5 | 4 |
| HGD/12-01 | 12 | 52 | M12x1 | 30° | 7 | 6 | 5 |
| HGD/12-02 | 12 | 50 | M10x0.75 | 16° | 7 | 6 | 5 |
| HGD/12-05 | 12 | 50 | M10x0.75 | 16° | 7 | 6 | 5 |
| HGD/12-07 | 12 | 50 | M12x1 | 30° | 7.5 | 6 | 5 |
| HGD/12-08 | 12 | 50 | M10x0.5 | 30° | 7 | 5 | 4 |
| HGD/12-09 | 12 | 50 | M12x1 | 30° | 7.5 | 6 | 5 |
| HGD/13-01 | 13 | 41.5 | M12x0.75 | 15° | 8 | 6 | 5 |
| HGD/14-02 | 14 | 64 | M13x0.75 | 16° | 8.5 | 7 | 6 |
| HGD/14-03 | 14 | 62 | M14x1 | 15°30′ | 8.5 | 7 | 6 |
| HGD/15-02 | 15 | 54 | M14x1 | 16° | 10 | 8 | 7 |
| HGD/15-03 | 15 | 54 | M14x0.75 | 15° | 8.5 | 7 | 6 |
| HGD/16-01 | 16 | 50 | M14x1 | 16° | 10 | 8 | 7 |
| HGD/16-03 | 16 | 60 | M14x1 | 30° | 10 | 8 | 7 |
| HGD/16-06 | 16 | 55 | M16x1 | 30° | 10 | 8 | 7 |
| HGD/16-07 | 16 | 63 | M14x1 | 15°30′ | 10 | 8 | 7 |
| HGD/16-10 | 16 | 58 | M14x1 | 16° | 10 | 8 | 7 |
| HGD/16-12 | 16 | 59 | M14x1 | 16° | 10 | 8 | 7 |
| HGD/16-15 | 16 | 59 | M15x1 | 16° | 11 | 9 | 8 |
| HGD/16-16 | 16 | 58.5 | M14x1 | 20° | 10 | 8 | 7 |
| HGD/16-18 | 16 | 63 | M14x1 | 16°30′ | 10 | 8 | 7 |
| HGD/18-01 | 18 | 59 | M16x1 | 30° | 12 | 10 | 8 |
| HGD/18-02 | 18 | 60 | M18x1 | 30° | 13 | 10 | 9 |
| HGD/18-03 | 18 | 60 | M18x1 | 30° | 13 | 10 | 9 |
| HGD/18-06 | 18 | 76 | M18X1 | 22° | 13 | 10 | 9 |
| HGD/18-08 | 18 | 60 | M18X1 | 30° | 12.5 | 10 | 8 |
| HGD/20-01 | 20 | 55 | M20x1 | 30° | 14 | 11 | 9 |
| HGD/20-06 | 20 | 55 | M20x1 | 30° | 13 | 11 | 9 |
| HGD/20-07 | 20 | 58 | M18x1 | 15° | 13 | 11 | 9 |
| HGD/21-03 | 21 | 57.5 | M18x1 | 12° | 14 | 11 | 9 |
| HGD/22-01 | 22 | 68 | M19x1 | 16° | 14 | 12 | 10 |
| HGD/22-03 | 22 | 70 | M20x1 | 15° | 15.5 | 13 | 11 |
| HGD/22-04 | 22 | 68 | M19X1 | 16° | 15 | 12 | 10 |
| HGD/22-08 | 22 | 68 | M22x1 | 16° | 16 | 13 | 11 |
| HGD/23-01 | 23 | 72 | M22x1 | 16° | 16.5 | 14 | 11 |
| HGD/24-03 | 24 | 61 | M24x1 | 30° | 16 | 13 | 11 |
| HGD/26-02 | 26 | 77 | M25x1 | 16° | 20 | 17 | 14 |
| HGD/26-04 | 26 | 71 | M24X1.5 | 15° | 18 | 15 | 13 |
| HGD/27-03 | 27 | 57.5 | M24x1 | 12° | 18 | 15 | 12 |
| HGD/28-02 | 28 | 81 | M25x1 | 30° | 20.5 | 17 | 14 |
| HGD/28-04 | 28 | 82 | M25x1 | 16° | 20.5 | 17 | 14 |
| HGD/28-05 | 28 | 82 | M27x1 | 16° | 22 | 18 | 15 |
| HGD/30-01 | 30 | 70 | M28x1 | 16° | 20.5 | 17 | 14 |
| HGD/30-02 | 30 | 85 | M28x1 | 16° | 20.5 | 17 | 14 |
| HGD/30-04 | 30 | 59 | M30x1 | 15° | 22 | 19 | 16 |
| HGD/30-05 | 30 | 59 | M30x1 | 16° | 22 | 19 | 16 |
| HGD/30-06 | 30 | 68 | M30x1 | 16° | 22 | 19 | 16 |
| HGD/30-07 | 30 | 70 | M30x1 | 16° | 22 | 19 | 16 |
| HGD/30-08 | 30 | 57.5 | M30X1 | 16° | 22 | 19 | 16 |
| HGD/32-02 | 32 | 71 | M32x1 | 30° | 23 | 19 | 16 |
| HGD/32-03 | 32 | 74 | M32x1 | 30° | 24 | 21 | 17 |
| HGD/33-01 | 33 | 70 | M30x1 | 16° | 26 | 22 | 18 |
| HGD/34-02 | 34 | 87.5 | M34x1 | 10° | 27.5 | 23 | 19 |
| HGD/34-03 | 34 | 87.5 | M34X1 | 10° | 27.5 | 23 | 19 |
| HGD/36-02 | 36 | 89.5 | M36x1 | 13° | 25 | 21 | 18 |
| HGD/40-03 | 40 | 72 | M36x1 | 30° | 29 | 25 | 21 |
| HGD/40-05 | 40 | 72 | M40x1 | 30° | 30 | 25 | 21 |
| HGD/41-01 | 41 | 54 | M38x1 | 10° | 32 | 27 | 22 |
| HGD/41-02 | 41 | 82 | M38x1 | 10° | 32 | 27 | 22 |
| HGD/41-03 | 41 | 82 | M38X1 | 10° | 32 | 27 | 22 |
| HGD/41-04 | 41 | 54 | M38X1 | 10° | 30 | 26 | 21 |
| HGD/42-01 | 42 | 82 | M40x1 | 16° | 33 | 28 | 23 |
| HGD/42-02 | 42 | 82 | M40x1 | 20°30′ | 33 | 28 | 23 |
| HGD/42-04 | 42 | 82 | M40x1 | 20° | 33 | 28 | 23 |
| HGD/44-01 | 44 | 87 | M40x1 | 20° | 33 | 28 | 23 |
| HGD/45-01 | 45 | 82 | M42x1 | 16° | 36 | 30 | 25 |
| HGD/46-01 | 46 | 92 | M45x1 | 16° | 38 | 32 | 26 |
| HGD/46-02 | 46 | 82 | M45x1 | 16° | 38 | 32 | 26 |
| HGD/48-02 | 48 | 81 | M48x1.25 | 30° | 38 | 33 | 27 |
| HGD/48-04 | 48 | 82 | M46x1 | 16° | 38 | 33 | 27 |
| HGD/48-06 | 48 | 81 | M46x1 | 10° | 38 | 33 | 27 |
| HGD/48-08 | 48 | 82 | M46X1 | 16° | 38 | 33 | 27 |
| HGD/50-02 | 50 | 82 | M49x1 | 19° | 42 | 36 | 29 |
| HGD/52-01 | 52 | 99 | M48x1.5 LH | 10° | 40 | 34 | 28 |
| HGD/52-02 | 52 | 95 | M50x1 | 16° | 43 | 37 | 30 |
Note : All dimensions are provided in millimeters (mm). We continually upgrade our products, so the specifications in the catalog are for reference only. Manufacturer reserves the right to modify drawings, specifications, and dimensions without prior notice.
